INTRODUCING THE FIRST PNEUMATICALLY POWERED HEAVY DUTY MACHINE

Available in 25” throat, the Heavy Duty SURELOK model provides the ultimate strength to ensure all of your heavy material applications are taken care of. Air powered, NO HYDRAULICS, machine can clinch material up to an astounding 10g.

FEATURES

  • Available in 25” throat depth
  • 2-1/2” stroke
  • Typical shear strength for 2-ply 10g mild steel is 1400lbs per clinch
  • Fasten materials as thin as 24g and as thick as 10g
  • APU – advanced power unit is faster, smoother,
  • quieter and uses less air, NO HYDRAULICS
  • Single foot pedal operation
  • Uses standard shop air supply
  • Optional tool kit for fastening stainless steel
  • Optional SPR tool kit for fastening aluminum composite, TPO
  • Small footprint

Download Brochures:

Heavy Duty Surelok III Brochure

Features & Options





Press Design Optimized 3” steel “C” frame
Features 24v High speed smart controls
Digital tooling adjustment
Single foot pedal

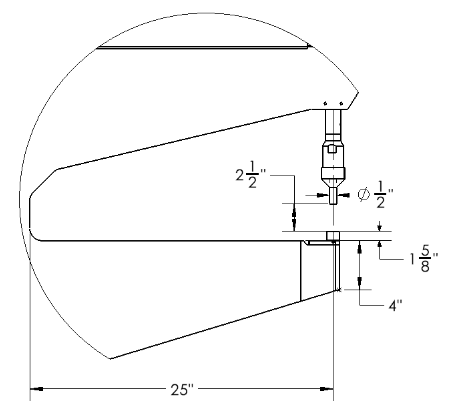

Stroke 2 1/2 “

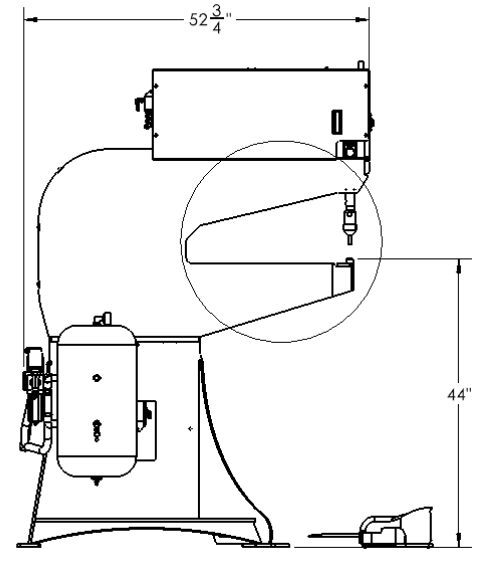

Throat 25”
Work Height 44″
Upper Tooling Modular quick-change punch
Hardened steel punch stripper
Lower Tooling Standard HD die
Capacity MAX: Two ply 0.138” mild steel.
MIN: Two ply 0.028” mild steel.
Cycle speed 40-45 cycles/minute
100% duty cycle
Air Requirements 80-100psi (recommended)
Approx. 0.5 cu ft free air per cycle.
(5 HP @ 60 cycles per minute)
